01.机器配置

系统 IP 运行实例端口 Redis版本
CentOS 7.5 192.168.56.65 7000
7001
7002		 redis-5.0.3
CentOS 7.5 192.168.56.66 7000
7001
7002		 redis-5.0.3

02.192.168.56.65配置

  • 创建conf配置文件夹
  • 三个⽂件的配置区别在port、pidfile、cluster-config-file三项
1
[root@k8s-node1 ~]# mkdir /root/conf/

2.1 7000.conf

1
2
3
4
5
6
7
8
9
[root@k8s-node1 ~]# vim /root/conf/7000.conf
port 7000
bind 192.168.56.65
daemonize yes
pidfile 7000.pid
cluster-enabled yes
cluster-config-file 7000_node.conf
cluster-node-timeout 15000
appendonly yes

2.2 7001.conf

1
2
3
4
5
6
7
8
9
[root@k8s-node1 ~]# vim /root/conf/7001.conf
port 7001
bind 192.168.56.65
daemonize yes
pidfile 7001.pid
cluster-enabled yes
cluster-config-file 7001_node.conf
cluster-node-timeout 15000
appendonly yes

2.3 7002.conf

1
2
3
4
5
6
7
8
9
[root@k8s-node1 ~]# vim /root/conf/7002.conf
port 7002
bind 192.168.56.65
daemonize yes
pidfile 7002.pid
cluster-enabled yes
cluster-config-file 7002_node.conf
cluster-node-timeout 15000
appendonly yes

2.4 启动redis服务

1
2
3
[root@k8s-node1 conf]# redis-server 7000.conf
[root@k8s-node1 conf]# redis-server 7001.conf
[root@k8s-node1 conf]# redis-server 7002.conf

03.192.168.56.66配置

  • 创建conf配置文件夹
  • 三个⽂件的配置区别在port、pidfile、cluster-config-file三项
1
[root@k8s-node1 ~]# mkdir /root/conf/

2.1 7003.conf

1
2
3
4
5
6
7
8
9
[root@k8s-node1 ~]# vim /root/conf/7003.conf
port 7003
bind 192.168.56.66
daemonize yes
pidfile 7003.pid
cluster-enabled yes
cluster-config-file 7003_node.conf
cluster-node-timeout 15000
appendonly yes

2.2 7004.conf

1
2
3
4
5
6
7
8
9
[root@k8s-node1 ~]# vim /root/conf/7004.conf
port 7004
bind 192.168.56.66
daemonize yes
pidfile 7004.pid
cluster-enabled yes
cluster-config-file 7004_node.conf
cluster-node-timeout 15000
appendonly yes

2.3 7005.conf

1
2
3
4
5
6
7
8
9
[root@k8s-node1 ~]# vim /root/conf/7005.conf
port 7005
bind 192.168.56.66
daemonize yes
pidfile 7005.pid
cluster-enabled yes
cluster-config-file 7005_node.conf
cluster-node-timeout 15000
appendonly yes

2.4 启动redis服务

1
2
3

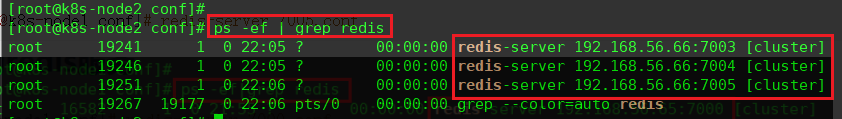

[root@k8s-node1 conf]# redis-server 7003.conf
[root@k8s-node1 conf]# redis-server 7004.conf
[root@k8s-node1 conf]# redis-server 7005.conf

04.创建集群

4.1 创建集群

  • redis-trib.rb是官方提供的Redis Cluster的管理工具，无需额外下载，默认位于源码包的src目录下
1
2
'''将redis-trib.rb复制到/usr/local/bin/下，以便在任何⽬录下调⽤此命令'''
[root@k8s-node1 conf]# cp /root/redis-5.0.3/src/redis-trib.rb  /usr/local/bin/
  • 但因该工具是用ruby开发的，所以需要准备相关的依赖环境
1
[root@k8s-node2 src]# yum -y install ruby
  • 运⾏如下命令创建集群
1
[root@k8s-node2 src]# redis-cli --cluster create 192.168.56.65:7000 192.168.56.65:7001 192.168.56.65:7002 192.168.56.66:7003 192.168.56.66:7004 192.168.56.66:7005 --cluster-replicas 1

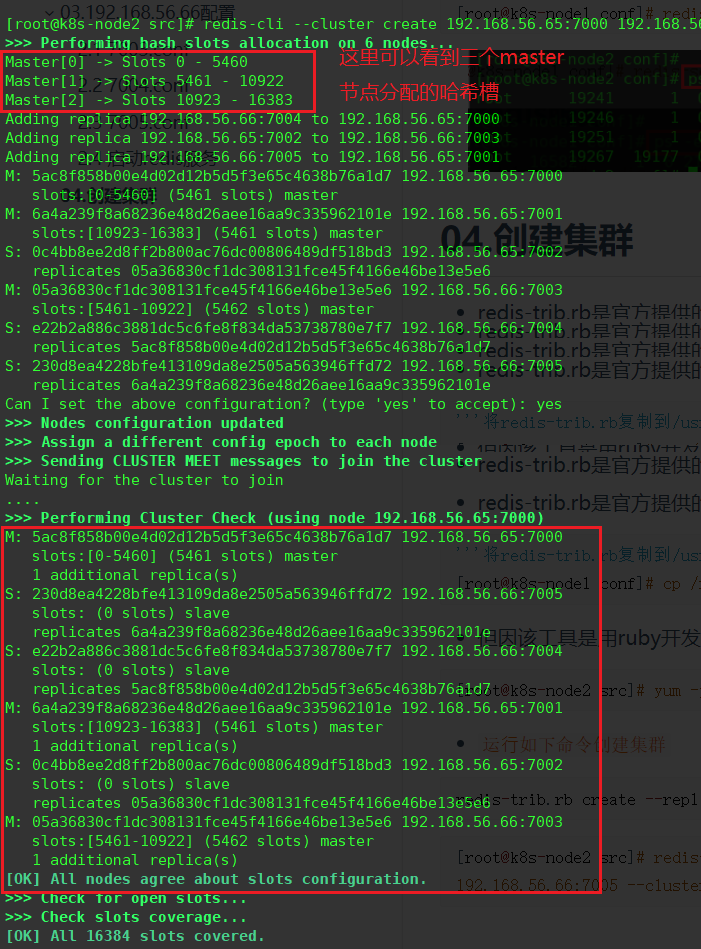

4.2 查看集群创建结果

  • 根据下图可以看出，当前搭建的主服务器为7000、7001、7003，对应的从服务器是7004、7005、7002

4.3 数据验证

  • 在7002上写入数据，会自动将操作转发给7003
  • 在7002和7003两台服务器中，7003是master，master能写入
1
2
3
4
[root@k8s-node1 conf]# redis-cli -h 192.168.56.65 -c -p 7002
192.168.56.65:7002> set name tom
-> Redirected to slot [5798] located at 192.168.56.66:7003
OK
  • 在7003中可以看到刚刚在7002中写入的数据
1
2
3
[root@k8s-node1 ~]# redis-cli -h 192.168.56.66 -c -p 7003
192.168.56.66:7003> get name
"tom"
  • 在7000客户端去查找刚刚的数据，其实当前redis实例没有这条数据
  • 会将请求转发给了7003这个redis进行查找
1
2
3
4
[root@k8s-node1 ~]# redis-cli -h 192.168.56.65 -c -p 7000
192.168.56.65:7000> get name
-> Redirected to slot [5798] located at 192.168.56.66:7003
"tom"

05.Python交互

5.1 安装redis-py-cluster

1
2
pip install redis==2.10.6
pip install redis-py-cluster==1.3.5

5.2 python使用redis集群

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
from rediscluster import *
if __name__ == '__main__':
  try:
    # 构建所有的节点，Redis会使⽤CRC16算法，将键和值写到某个节点上
    startup_nodes = [
        {'host': '192.168.56.65', 'port': '7000'},
        {'host': '192.168.56.65', 'port': '7001'},
        {'host': '192.168.56.65', 'port': '7002'},
        {'host': '192.168.56.66', 'port': '7003'},
        {'host': '192.168.56.66', 'port': '7004'},
        {'host': '192.168.56.66', 'port': '7005'},
    ]
    # 构建StrictRedisCluster对象
    src=StrictRedisCluster(startup_nodes=startup_nodes,decode_responses=True)
    # 设置键为name、值为itheima的数据
    result=src.set('name','itheima')
    print(result)
    # 获取键为name
    name = src.get('name')
    print(name)
  except Exception as e:
    print(e)
'''
打印结果：
True
itheima
'''

06.django中使用

6.1 Requirement

Python 3.0+

Django>=1.9.6

redis>=2.10.5

redis-py-cluster>=1.2.0

msgpack-python>=0.4.7

6.2 How to install

1
2
3
$python setup.py install
or
$pip install django-redis-cluster

6.3 Django Settings

1
2
3
4
5
6
7
8
9
10
11
12
13
CACHES = {
    'default': {
        'BACKEND': 'django_redis_cluster.cache.RedisClusterCache',
        "LOCATION": [
            "redis://127.0.0.1:7000/0",
            "redis://127.0.0.1:7001/0",
            "redis://127.0.0.1:7002/0",
        ],
        'OPTIONS': {
            "CLIENT_CLASS": "django_redis_cluster.client.DefaultClient",
        }
    }
}
